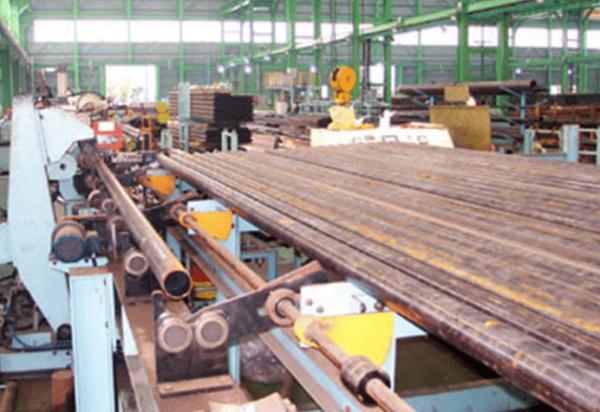

管子预处理线

时间:2023-03-07 17:15:48 来源:bj_wytc 点击:


设备用途  Specific Purpose
用于管子对接焊前的管端预处理,主要包括定长切断、管端坡口加工、管端内外抛光、管子内部吹灰清洁装置等
It is used for the tube end pretreatment before straight tube butt welding, including fixed-length cut, tube end beveling, inside and outside polishing of tube end, tube internal soot cleaning devices, etc.

参数Parameter

材料规格
Material Specification
管子外经
Tube Outer Diameter
32~76mm
管子壁厚
Tube Thickness
2.4~5mm
管子加工前长度
Tube Length before Processing
3000~12000mm
管子材料
Materials
碳钢 /低合金钢 /不锈钢
Carbon Steel / Low Alloy Steel / Stainless Steel
管料架
Tube Rack
管料架长度Length12000mm
负载能力 Bearing Capacity76mmx30根
管长测量装置
Length Measurement Device
测量范围 Range2500~12000mm
最大传送速度
Max. Conveying Speed
40m/min
测量精度 Measurement Accuracy+/-1mm
整条线工作节拍
Work Beat of Entire Line
≤1.5min


特点  Performance Characteristic
整线自动化程度高,集中控制,只需1~2名操作人员监督巡视;
High automation for the entire line, centralized control, only 1 ~ 2 operator are needed for supervision and inspection.
生产效率高,各工位工作节拍紧凑,整线节拍控制在1.5分钟内;
High efficiency, impact working beat of each working position, the beat of entire line is within 1.5 minutes.
生产线具备各种报警提示功能,方便设备维护。
The production line is equipped with various alarm prompt functions, which makes it easy
