设备用途 Specific Purpose
用于管子对接焊接，是膜式壁、蛇形管等部件生产必备设备。

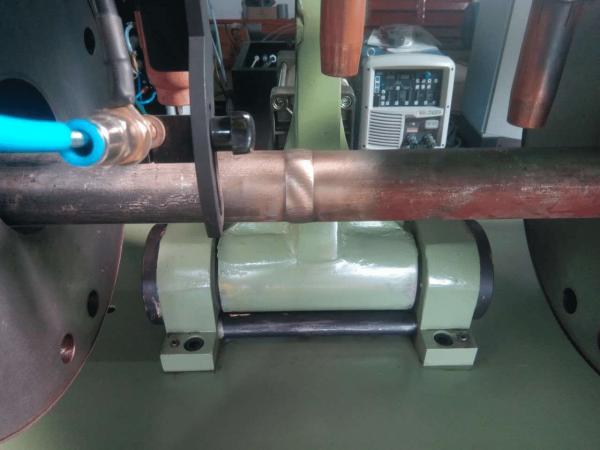

It is applicable to tube to tube welding, which is a necessary machine in membrane panel, serpentuator and other production system.
参数 Parameter
| 型号 Model | WZZG76RT-L | WZZG76RT |
| 管子直径（mm） Diameter of Tube | 32-76 | 32-76 |
| 管子壁厚mm Thickness of Tube | ＜5mm | ＜7mm |
| 最长接管 Max Tube Butting Length | 60m | 60m |
| 特点 Features | 不开坡口，一次焊道 No need to bevel and one-time finish | 开坡口 Need to bevel 多层多道Multi layers & passes 连续焊接 Continuous welding |
| 主要用途 Main Application | 膜式壁Membrane Panel 蛇形管Serpentuator | 工业锅炉 Industrial boilers 蛇形管 Serpentuator 膜式壁 Membrane Panel |
特点 Performance Characteristic
操作简单，焊接合格率高。
Simple operation and high qualification rate of welding.
